28.5V DC power supply
– Adopting pure digital control, high frequency PWM and full bridge conversion technology, high efficiency of the whole machine.
– Strong overload capacity, support up to 400% current overload. Excellent output stability, fast dynamic response.
– Excellent output stability, fast dynamic response.

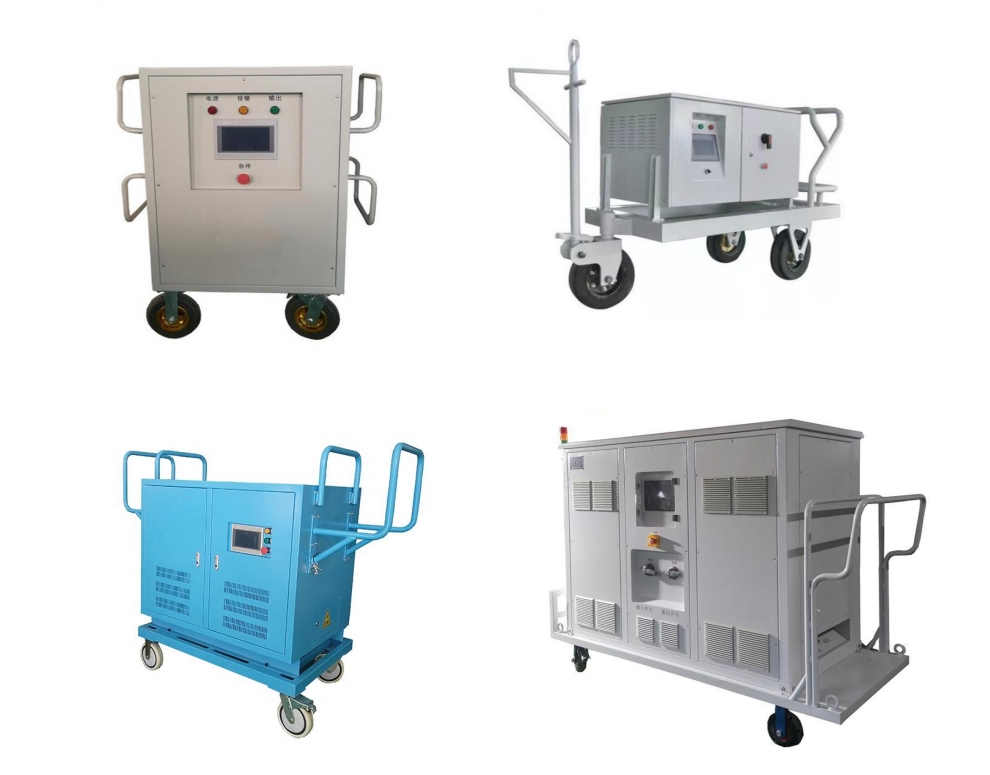

– There are two types of models: upright and trailer type, which is convenient for airport/hangar mobile or fixed-point use.
– Adopt advanced inverter technology to realize high power density.
– LED/LCD display, clear and intuitive interface, simple and easy to operate
– High performance DSP as the central processor, pure digital measurement and control technology
– Adopt intelligent thyristor module to realize the soft start of the main circuit
270V DC power supply
– Adopting 12-pulse rectification, high-performance FPGA as the central processor, pure digital measurement and control technology.
– Fast dynamic response and other features to meet the outdoor IP55 protection level, ultra-wide (-40 ~ 55 ℃) operating temperature range.
– High efficiency, small size, light weight, low noise, power density to meet the target customer requirements.
– Complete protection function, intelligent monitoring and protection record mechanism, safe and reliable operation.
– Small size and light weight, suitable for different installation methods. Fixed mounting and trailer mounting for various applications.
– Special technical specifications can be customized according to customer requirements
(DC28V 0-33V) Nominal Voltage: 28.5VDC | |||||
NO | Model | INPUT (VAC) | OUTPUT (VDC) | OUTPUT (AMPS) | CAPACITY (WATTS) |
1 | AZY-ATDA28.5-50 | Single phase 220VAC 50Hz/60Hz | 0~28.5VDC | 0-50A | 1425 |
2 | AZY-ATDA28.5-100 | Single phase 220VAC 50Hz/60Hz | 0~28.5VDC | 0-100A | 2850 |
3 | AZY-ATDA28.5-200 | Single phase 220VAC 50Hz/60Hz | 0~28.5VDC | 0-200A | 5700 |
4 | AZY-ATDA28.5-400 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-400A | 11400 |
5 | AZY-ATDA28.5-500 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-500A | 14250 |
6 | AZY-ATDA28.5-600 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-600A | 17100 |
7 | AZY-ATDA28.5-800 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-800A | 22800 |
8 | AZY-ATDA28.5-1000 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1000A | 28500 |
9 | AZY-ATDA28.5-1200 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1200A | 34200 |
10 | AZY-ATDA28.5-1500 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1500A | 42750 |
11 | AZY-ATDA28.5-1800 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1800A | 51300 |
12 | AZY-ATDA28.5-2000 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-2000A | 57000 |
(DC270V 0-330V) Nominal Voltage: 270VDC | |||||
NO | Model | INPUT (VAC) | OUTPUT (VDC) | OUTPUT (AMPS) | CAPACITY (WATTS) |
13 | AZY-ATDA270-30 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-30A | 8100 |
NO | Model | INPUT (VAC) | OUTPUT (VDC) | OUTPUT (AMPS) | CAPACITY (WATTS) |
14 | AZY-ATDA270-50 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-50A | 13500 |
15 | AZY-ATDA270-100 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-100A | 27000 |
16 | AZY-ATDA270-150 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-150A | 40500 |
17 | AZY-ATDA270-200 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-200A | 54000 |
18 | AZY-ATDA270-300 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-300A | 81000 |
19 | AZY-ATDA270-500 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-500A | 135000 |
20 | AZY-ATDA270-800 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-800A | 216000 |
